Hosting a Package Repository

By default, Plakar Control Plane downloads integrations and appliance components from plakar.io. In an air-gapped environment, you can host these files on your own network and configure the appliance and Plakar Control Plane to use them instead.

Air-gapped deployments use two separate repositories:

  • Integrations repository: contains the integration index and .ptar packages that Plakar Control Plane uses after it starts.
  • Releases repository: contains the component definitions used by the appliance to configure Plakar Control Plane during its initial boot and subsequent updates.

Both repositories are plain directory trees served over HTTP or HTTPS. They can be hosted on the same server or on separate servers.

Integrations repository

The integrations repository contains the integrations distribution files published at https://www.plakar.io/dist/plugins/kloset/enterprise. The repository uses a slightly different layout: the integrations-v1.0.0.json index is moved to the repository root, while the integration packages remain under the enterprise directory.

<air-gapped-package-repository>/
├── integrations-v1.0.0.json
└── enterprise/
  └── v1.1.0/
    ├── aws/
    │ ├── aws_v1.1.3_linux_amd64.ptar
    │ ├── aws_v1.1.3_linux_amd64.ptar.sum
    │ ├── aws_v1.1.3_linux_amd64.ptar.sum.sig
    │ ├── recipe.yaml
    │ ├── recipe.yaml.sum
    │ ├── recipe.yaml.sum.sig
    │ └── ...
    ├── postgresql/
    └── ...

The enterprise directory contains one directory for each integration API version. Each integration directory contains the integration packages, recipe, checksums, and signatures.

Plakar Control Plane verifies package signatures before installing them, so the .sum and .sig files must also be mirrored.

Mirror the tree from plakar.io, then move the index to the repository root:

wget --mirror --no-parent --no-host-directories --cut-dirs=3 \
  --accept '*.ptar,*.yaml,*.sum,*.sig,*.json' \
  -e robots=off \
  https://www.plakar.io/dist/plugins/kloset/enterprise/
mv enterprise/integrations-v1.0.0.json .

The --accept option limits the mirror to the repository files and excludes the generated directory listing pages.

After mirroring the files, serve the resulting directory from your HTTP or HTTPS server.

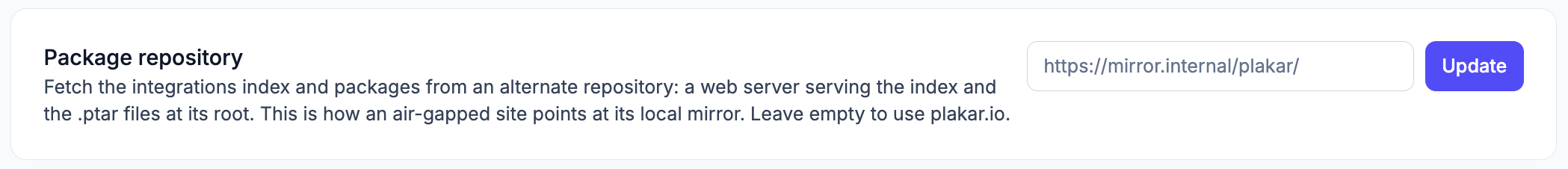

Unlike the releases repository, the integrations repository is configured in Plakar Control Plane rather than in the appliance user-data. Open the settings and enter the URL of the server hosting the mirrored files in the package repository field, for example https://dist.corp.example/integrations.

The URL must point to the root of the repository, where integrations-v1.0.0.json is located, and not to the enterprise directory.

Plakar Control Plane retrieves the integrations index and .ptar packages from this server instead of plakar.io. Leave the field empty to use the default plakar.io repository.

Updating package repository

Releases repository

The appliance also needs access to the component definitions used to deploy Plakar Control Plane. These files are separate from the integrations repository and must be mirrored independently.

The releases are available under:

https://www.plakar.io/dist/releases/plakar/enterprise/

Each version is stored in its own directory and contains three files: proxy.yaml, plakman.yaml, and database.yaml.

Mirror the version you intend to run. Replace v1.1.2 with the required version:

wget --mirror --no-parent --no-host-directories --cut-dirs=4 \
  --accept '*.yaml' \
  -e robots=off \
  https://www.plakar.io/dist/releases/plakar/enterprise/v1.1.2/

The --accept option limits the mirror to the component definition files and excludes the generated directory listing pages.

When a new version is released, mirror it into the same repository alongside the versions you already host, then upgrade to the new version.

Configure the appliance

Point the appliance to your local releases repository in its user-data:

#cloud-config
releases:
  url: https://dist.corp.example/plakar/enterprise
  version: v1.1.2

The url must use either http:// or https://. If an unsupported URL scheme is configured, the appliance logs the configuration and falls back to plakar.io.

If a forward proxy is configured, the host specified in releases.url is automatically excluded from the proxy.

Serving the repositories

Both repositories can be served using any static HTTP server. For example, Caddy can serve both repositories from different paths on the same host:

:80
handle_path /integrations/* {
  root * /srv/integrations
  file_server browse
}

handle_path /enterprise/* {
  root * /srv/enterprise
  file_server browse
}

The /integrations path serves the integrations repository, while /enterprise serves the releases repository.

You can also host the repositories on separate servers. In either case, make sure the appliance and Plakar Control Plane can reach the configured repository over the internal network.
